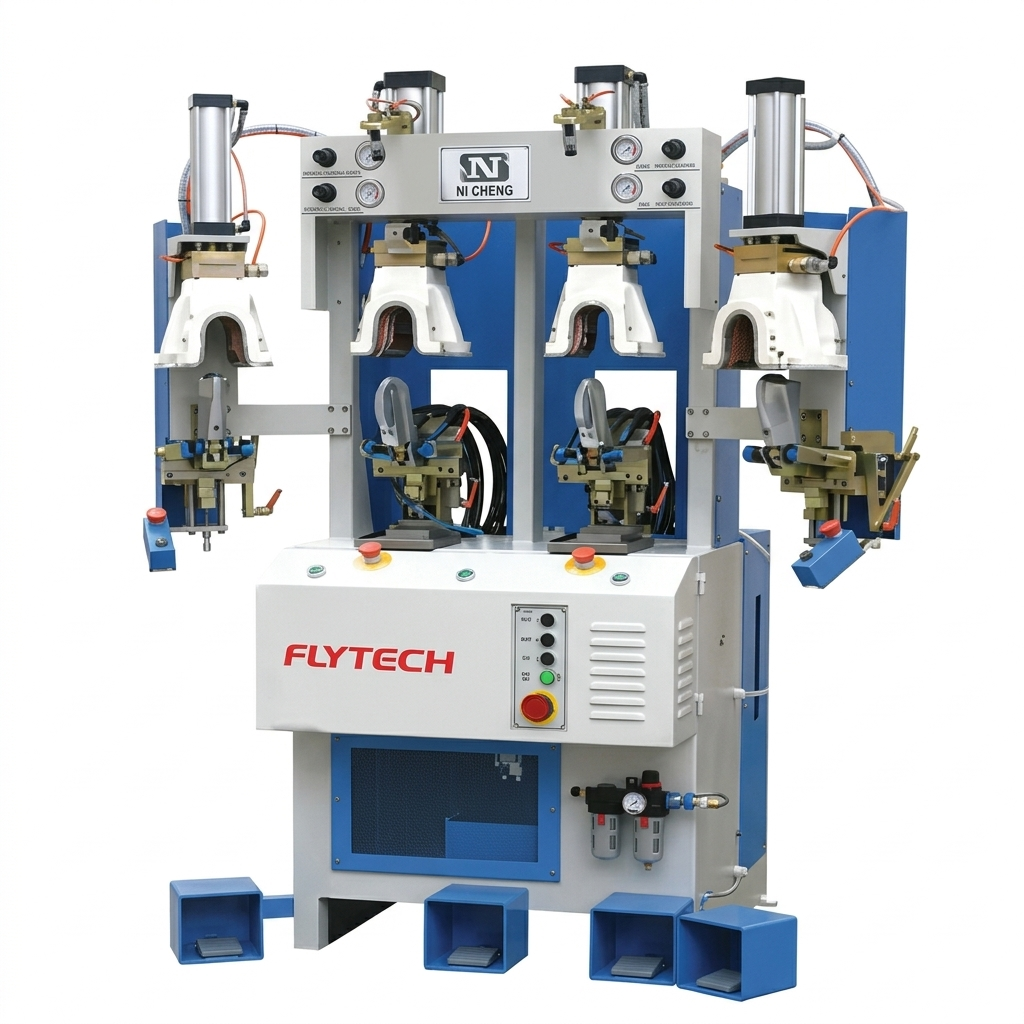

A Counter Moulding Machine is a specialized piece of equipment used in the footwear manufacturing industry to shape and mold the heel counter of a shoe. The heel counter is the stiff component located at the back of the shoe, providing structure, support, and stability to the heel area. This machine ensures accurate molding, improved durability, and a perfect fit, making it an essential tool for high-quality shoe production.
Designed with advanced technology and robust construction, the counter moulding machine enhances production efficiency while maintaining consistent quality standards across all types of footwear.
Introduction to Counter Moulding Machine
In modern footwear manufacturing, precision and consistency are key factors. The Counter Moulding Machine is used to heat and shape thermoplastic heel counters so they perfectly match the design and structure of the shoe. It ensures that the counter fits seamlessly inside the shoe, providing proper heel support and enhancing overall comfort.
This machine is widely used in factories producing leather shoes, sports shoes, safety footwear, and fashion footwear.
Key Features of Counter Moulding Machine
Accurate Moulding System: Ensures precise shaping of heel counters
Temperature Control: Adjustable heating system for different materials
Quick Heating Technology: Reduces cycle time and improves efficiency
Adjustable Moulds: Suitable for various shoe sizes and designs
User-Friendly Operation: Easy controls for smooth operation
Durable Construction: Built with high-quality materials for long-term use
Energy Efficient: Optimized power consumption
Low Maintenance: Minimal servicing required
Working Principle
The Counter Moulding Machine operates through a combination of heat and pressure:
The heel counter material is placed inside the machine.
The heating system softens the thermoplastic material.
The mould applies pressure to shape the counter according to the shoe design.
The molded counter is cooled to retain its shape.
The finished counter is ready for assembly in the shoe.
This process ensures precise shaping and consistent quality.
Applications
Counter moulding machines are widely used in:
Leather footwear manufacturing
Sports shoe production
Safety shoe industries
Casual and fashion footwear manufacturing
Export-oriented shoe factories
They are suitable for thermoplastic materials and synthetic components used in heel counters.
Advantages of Using Counter Moulding Machine
1. Perfect Heel Support
Ensures accurate shaping of heel counters, providing better support and comfort.
2. Consistent Quality
Delivers uniform results across all products.
3. Increased Production Efficiency
Reduces production time with fast heating and moulding cycles.
4. Cost-Effective Solution
Minimizes material wastage and labor costs.
5. Versatility
Compatible with various shoe designs and materials.
Types of Counter Moulding Machines
Manual Counter Moulding Machine: Suitable for small-scale production
Semi-Automatic Machine: Offers better efficiency with partial automation
Fully Automatic Machine: Ideal for large-scale industrial production
Hot & Cold Moulding Machine: Combines heating and cooling processes
Technical Specifications (Typical)
Machine Type: Counter Moulding Machine
Operation: Manual / Semi-Automatic / Automatic
Heating System: Electric
Temperature Control: Adjustable
Material Compatibility: Thermoplastic, synthetic
Production Capacity: High (depending on model)
Why Choose Our Counter Moulding Machine?
Advanced moulding technology
High precision and reliability
Durable and long-lasting performance
Easy operation and maintenance
Competitive pricing with high return on investment
Our machines are designed to meet global footwear manufacturing standards, ensuring efficiency, durability, and superior product quality.
Maintenance Tips
To ensure optimal performance:
Regularly clean moulding surfaces
Check heating elements and temperature settings
Lubricate moving parts periodically
Inspect mould alignment
Replace worn components as needed
Proper maintenance enhances machine life and ensures consistent output quality.
Conclusion
The Counter Moulding Machine is a vital component in modern footwear manufacturing, providing precise shaping and superior heel support. With its advanced features, efficient operation, and durable construction, it plays a crucial role in producing high-quality footwear.
Investing in a reliable counter moulding machine helps manufacturers improve productivity, reduce costs, and deliver comfortable, durable shoes that meet market demands.
