Description

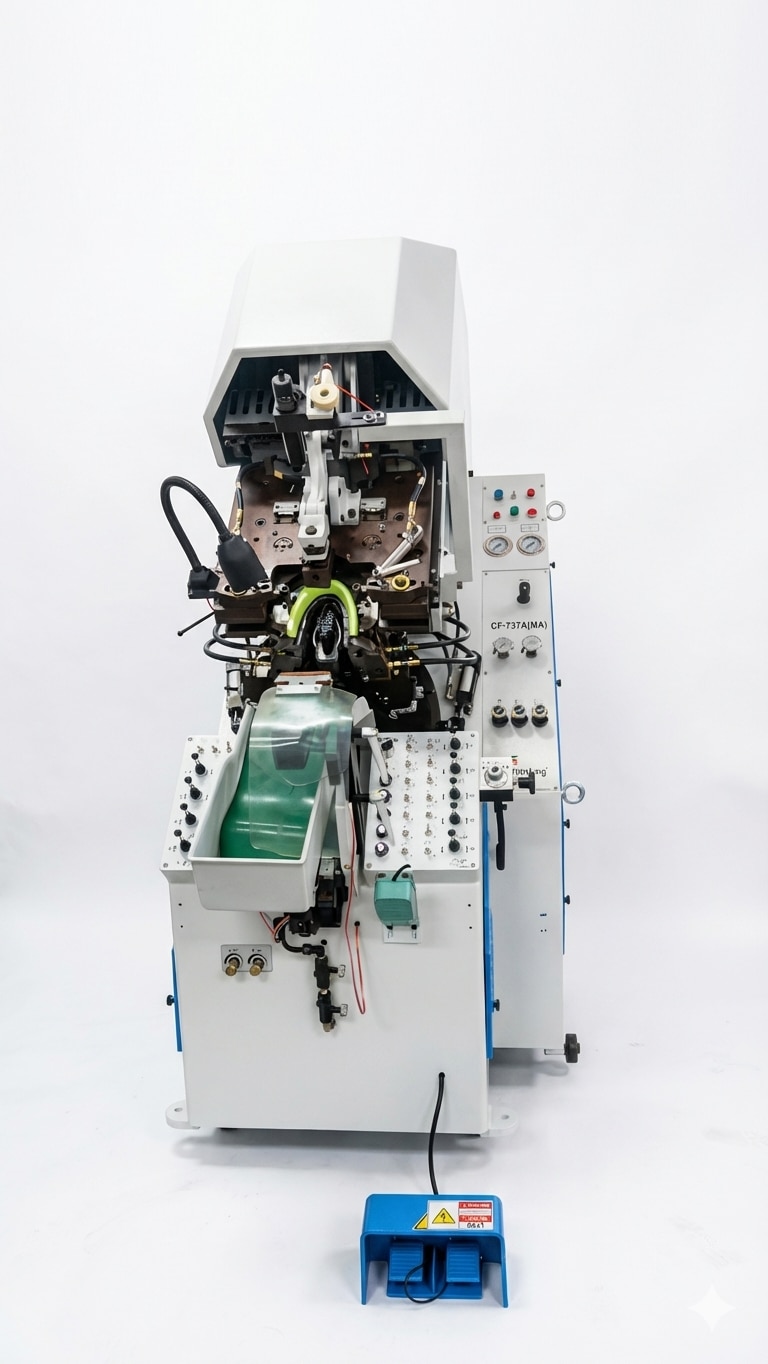

Toe Lasting Machine is a hydraulic device that stretches the front upper of the footwear over a last (mold) and bonds it to the insole. It shapes and secures the toe area precisely using heated pincers, wipers, and adhesive for improved consistency and efficiency over manual methods. Also known as 9 Pincer Toe Lasting Machine, Toe Lasting Machine (without auto cementing).
Specifications
| ASM | 737A |
|---|---|
| Weight | 1100 Kgs |
| Oil Pressure | 50 Kg/cm2 |
| Hydraulic Oil | 100 Litres (68 No.) |
| Heating | 1000W |
| Productivity | 200 pairs/hr |
| Dimensions (LxWxH) | 68x38x78 inches |
| Power | 3HP |
